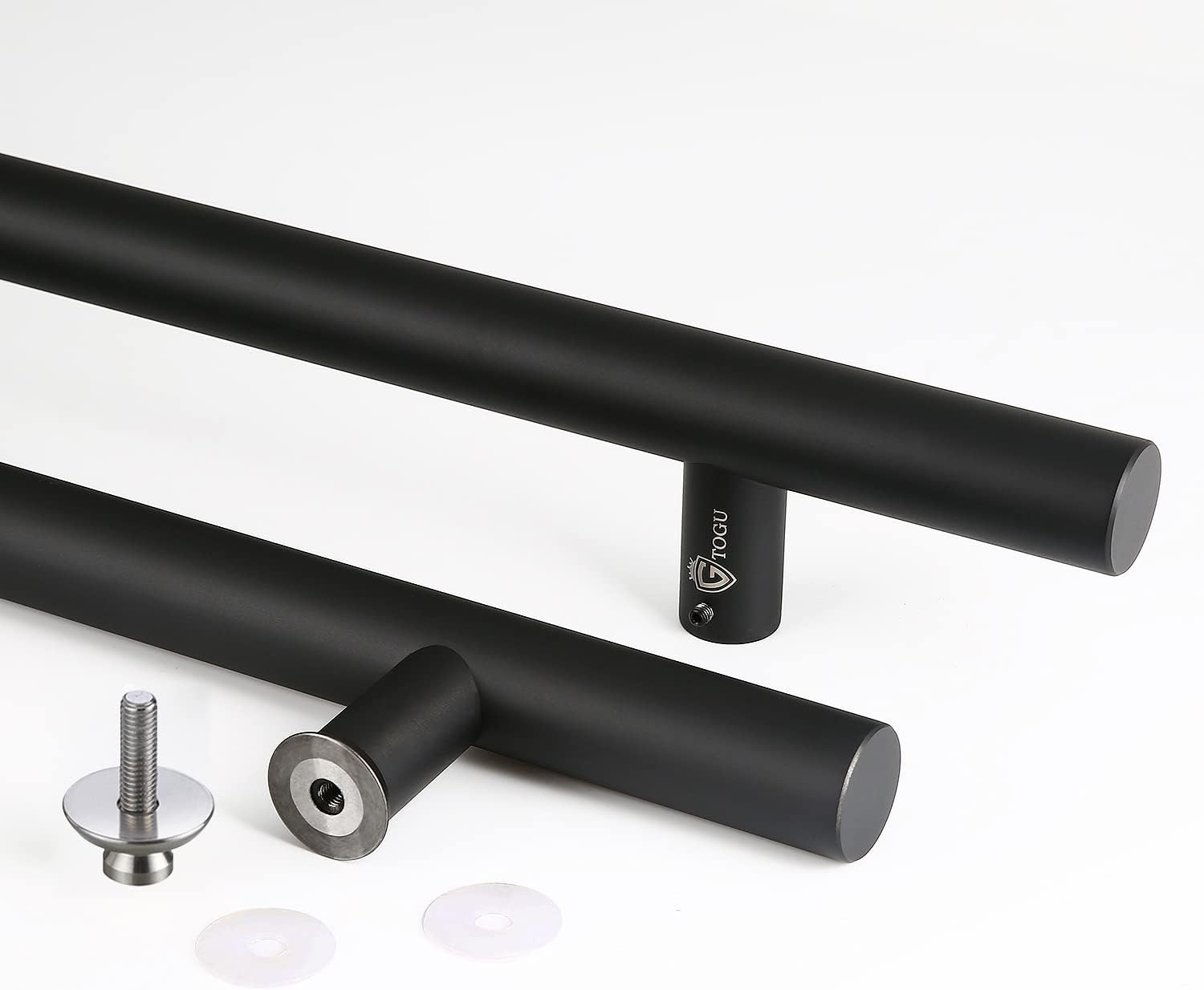

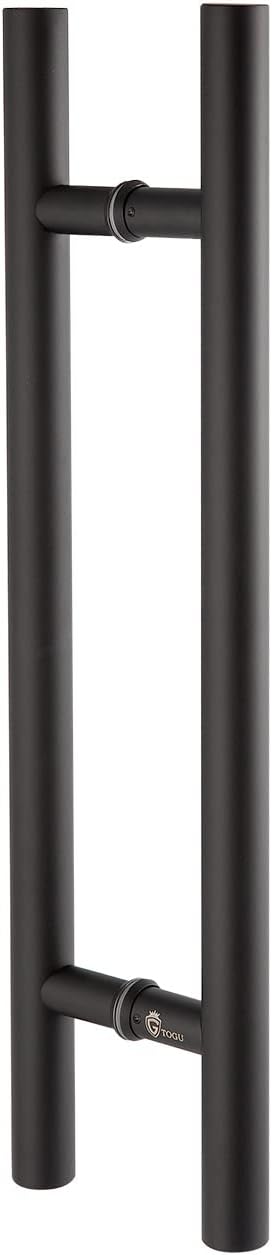

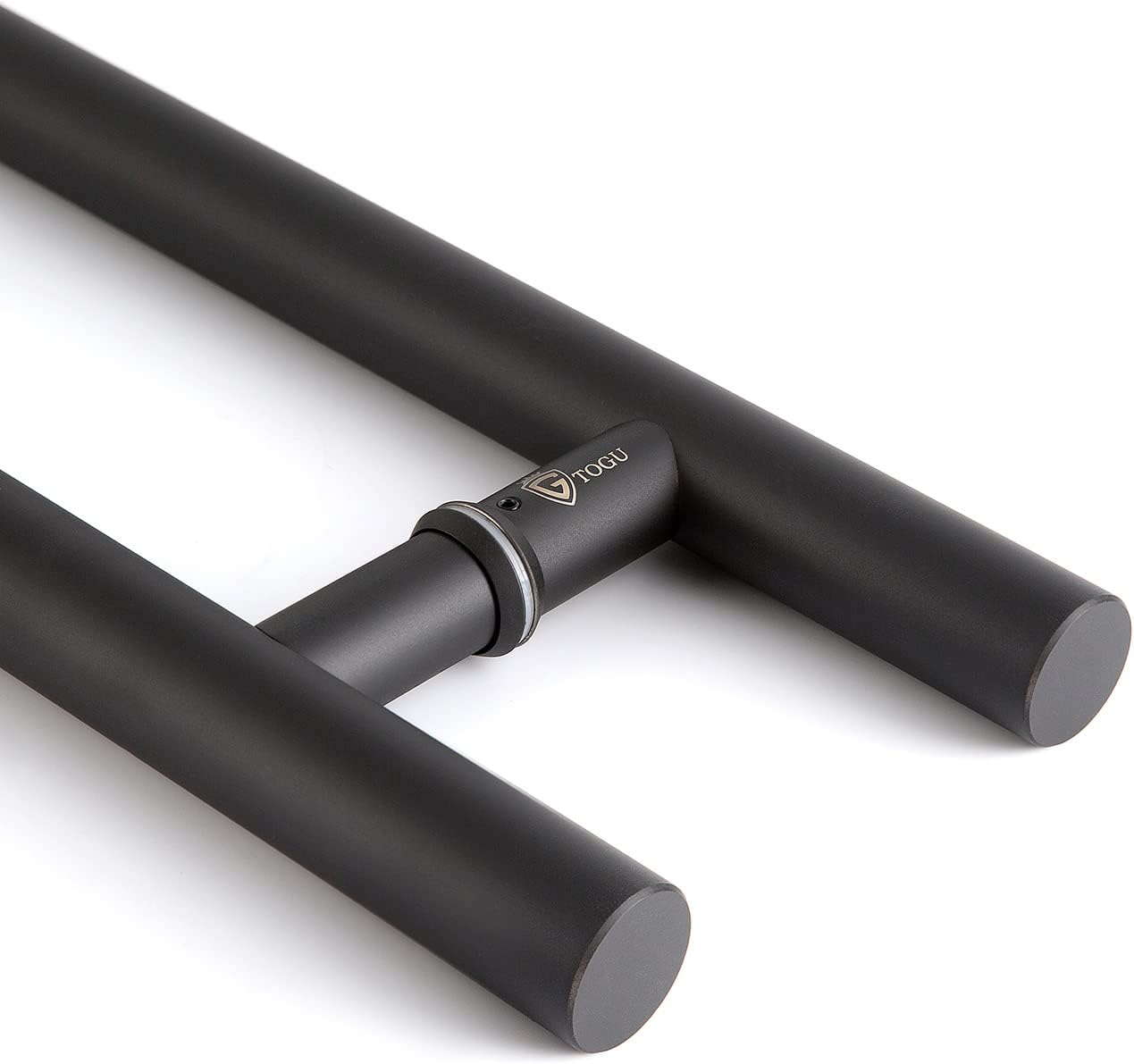

TOGU TG-6012 71-Inch Double-Sided Push Pull Door Handle, Matte Black SUS304 Stainless Steel Ladder Pull, Heavy-Duty for Commercial Glass, Residential Wood Barn & Metal Doors (1800 * 38mm)

Brand: TOGU

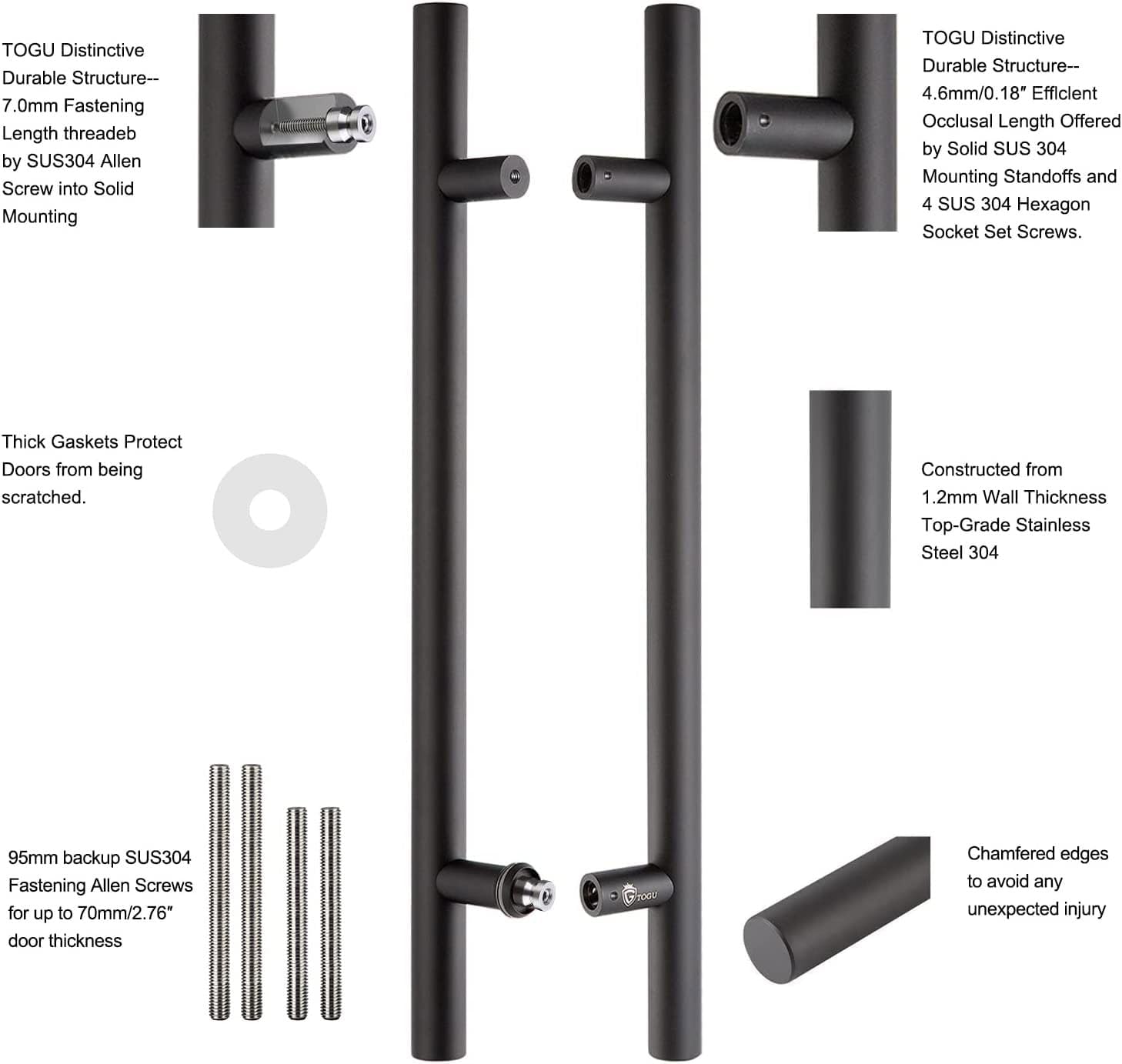

Handle Material: 1.2mm Wall Thickness Commercial Grade-304 Stainless Steel

Mounting Standoffs and Threaded Fastener Bolts Material: 100% Solid German Standard Commercial Grade-304 which will result in a very long durability and usage.

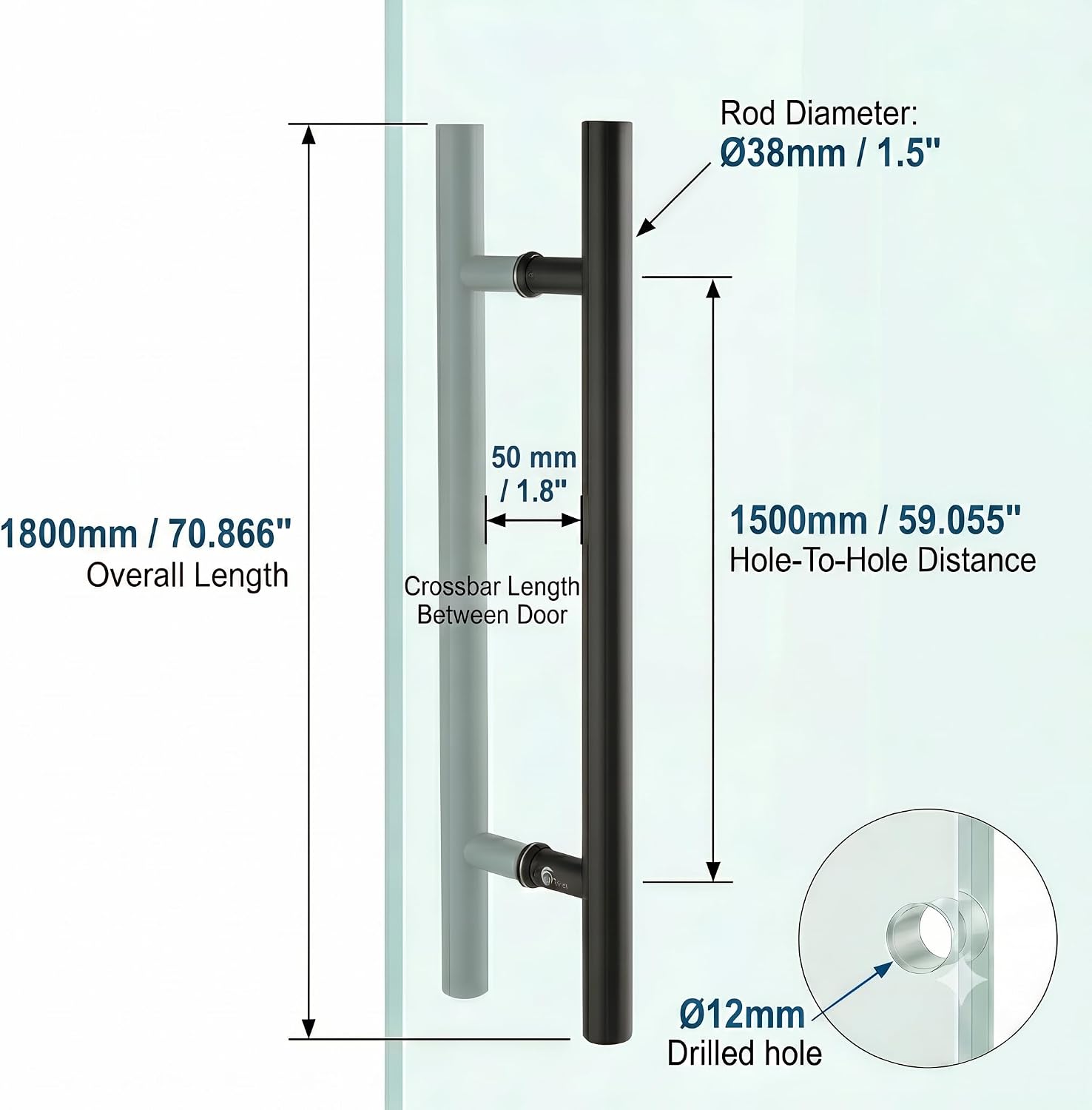

Total length: 1800mm / 70.87inches

Center-to-Center Mounting Distance: 1500mm/59.05 inches

Mounting Standoffs Height： 2.05 inch/52 mm

Cross-Section Diameter: 1.50 inch/38mm

Finish: Matte black

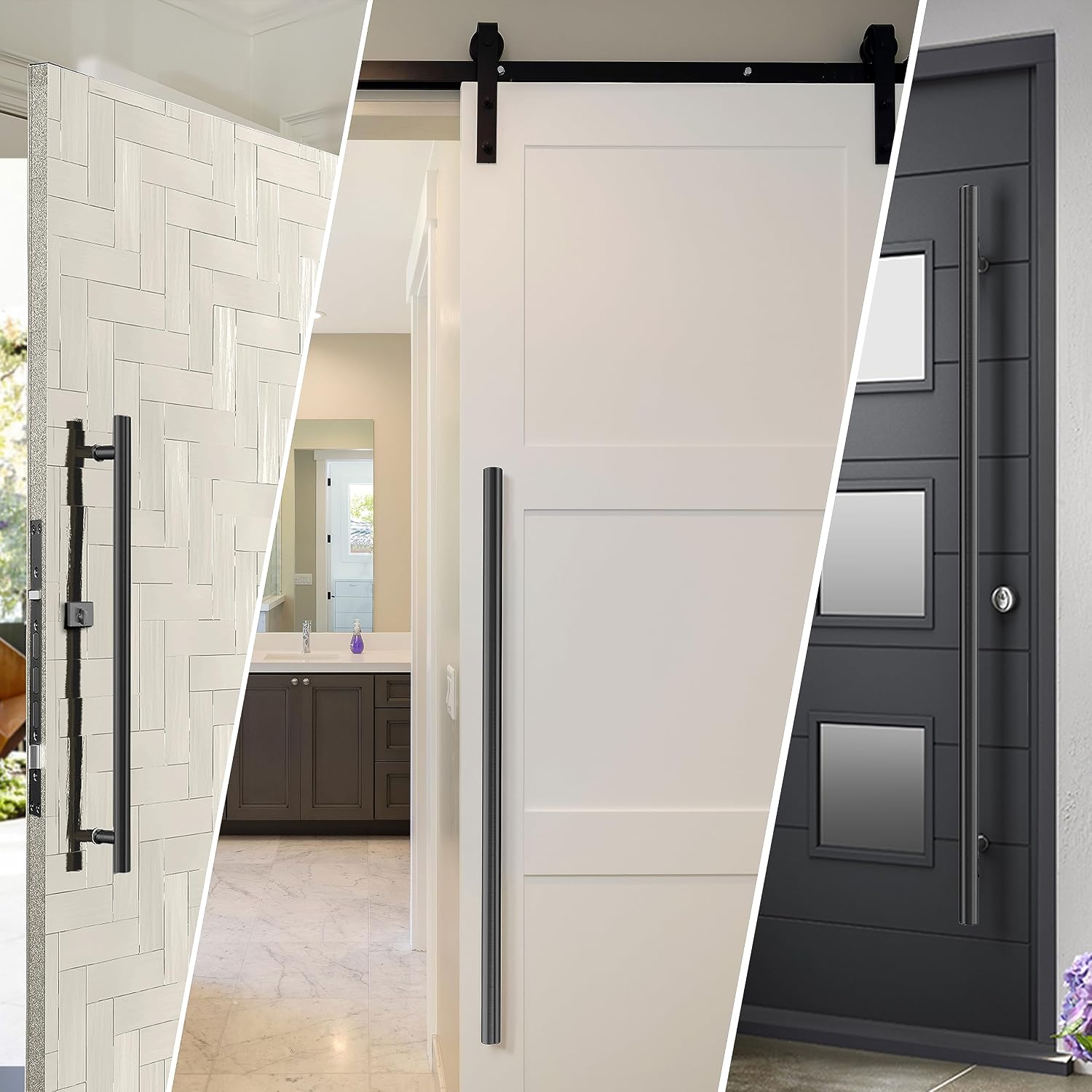

Door Type: Mountable on all types of doors including but not limited to glass and wooden doors, works on door thickness from to 0.31 inch/8mm to up to 2.56 inch/65mm.

Note: Each purchase comes as a PAIR of door pulls for inside and outside of a single door. For double doors, 2 pairs are required.

Steps for Installation:

Drill and create two end to end holes with diameter between 0.315 - 0.600 inches (0.375 is recommended) on the door with a Center-to-Center Mounting Distance 300mm/11.81 inches.

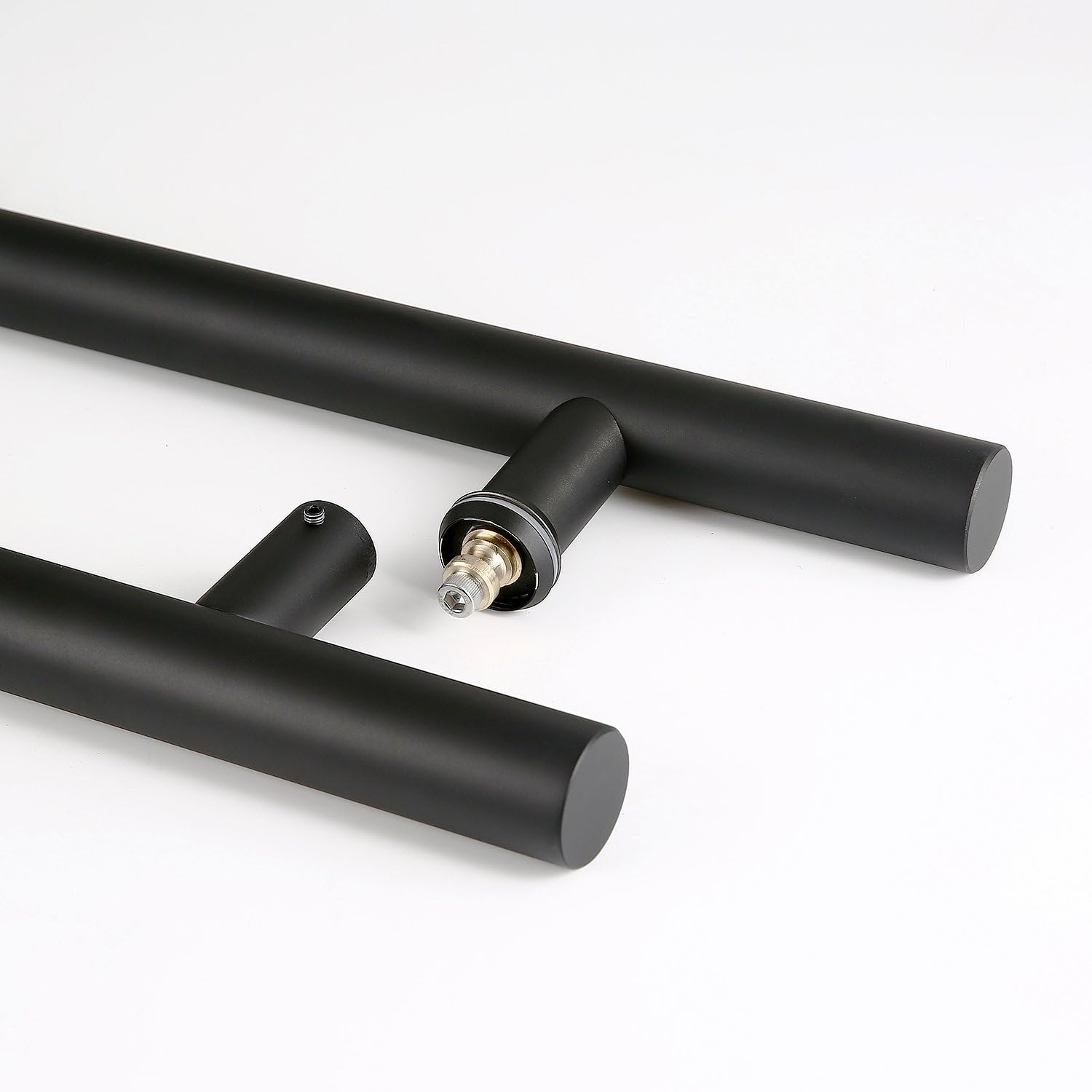

Use the Hexagonal Allen wrench to lose the hex socket set screws in the top and bottom pull connection base, remove apart the inner side and outer side of the door pulls.

Put the inner side pull handle and outer side pull handle aligning at each other and tighten the 4 pieces of the hex socket set screws in the top and bottom pull connection base. This completes the installation process.

Warranty Description : Limited Lifetime Replacement Warranty

Features & Specs

• Additional Features : Durable, Easy to Install
• Handle Attachment Mechanism : Screws
• Handle Compatibility : Universal
• Handle Type : Pull Handle
• Specific Uses For Product : Door

Item details

• ASIN : B01CNKZZC2
• Brand Name : TOGU
• Customer Package Type : FFP
• Included Components : Spare SUS304 hexagonal socket screws and 2 size allen wrenches to complete installation
• Manufacturer : ?TOGU HARDWARE
• Manufacturer Part Number : TOGU 6012BC-1800*38
• UPC : 723800885492

Materials & Care

• Handle Material : Wood
• Material Type : Stainless Steel
• Metal Type : Stainless Steel

Measurements

• Center To Center Spacing : 59.05 Inches
• Item Dimensions L x W : 72'L x 8'W
• Item Weight : 9.7 Pounds
• Number of Items : 1
• Projection Distance : 2.05 Inches
• Unit Count : 1 Count

Style

• Color : Matte Black
• Exterior Finish : Matte Black, Stainless Steel
• Finish Types : Matte Black
• Shape : Hexagonal
• Style Name : Modern
• Theme : Modern
