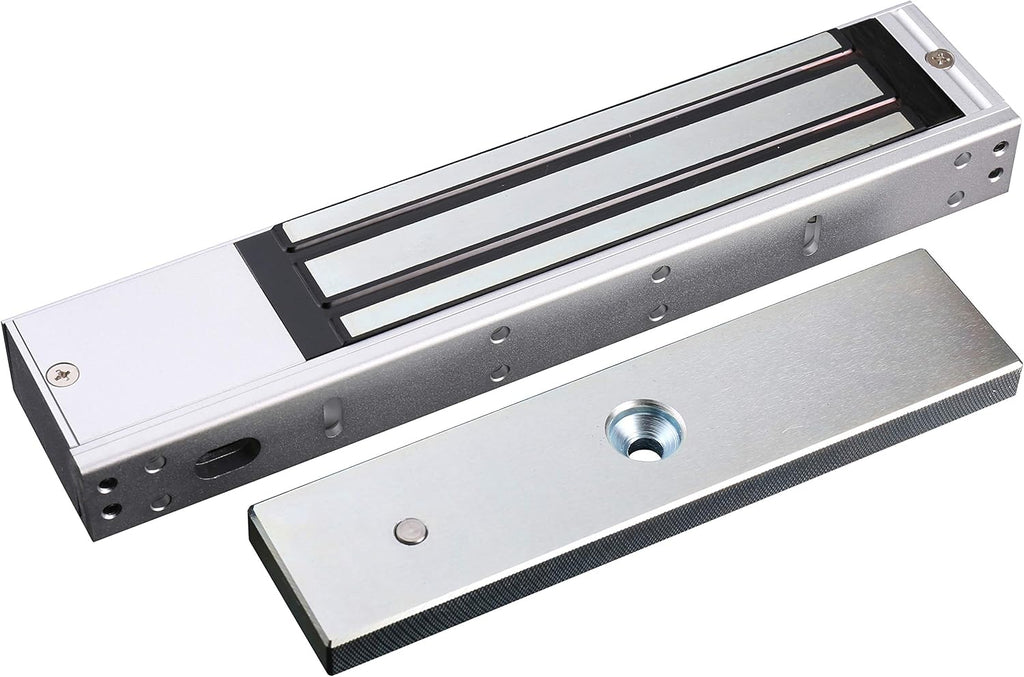

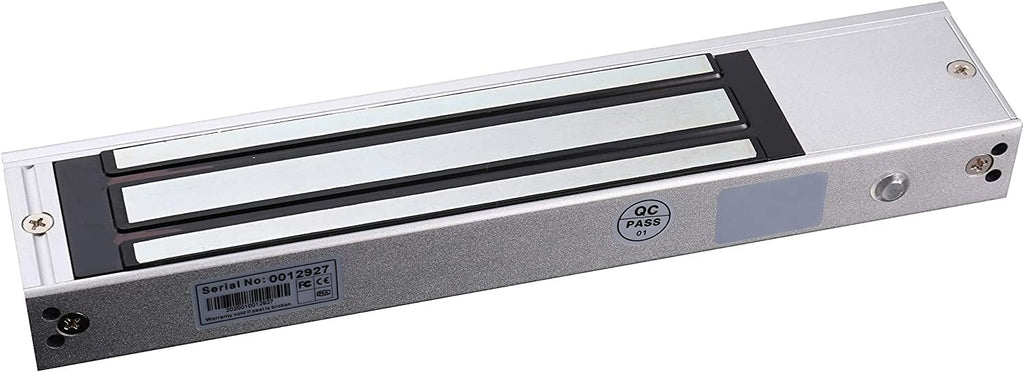

350Kg 800Lbs Force Magnetic Lock Fail Safe Mode for Single Door Access Control

Advantage:
Collinear Load Test 350kg/800lb
Dual Voltage 12 or 24 VDC (optional)
The Standard Voltage is 12VDC when Finished
MOV Provides Reverse Current Protection
Anti-Residual Magnetism Designed
High Strength Material, Anodized Aluminum Housing
Design without Mechanical Failure
Increase the holding Force,Dual Insulative Housing
CE Certificate by European Union,MA Certificate by China Public Security OfficeFeatures:
NC mode - (locked while supplied with power), fail safe mode

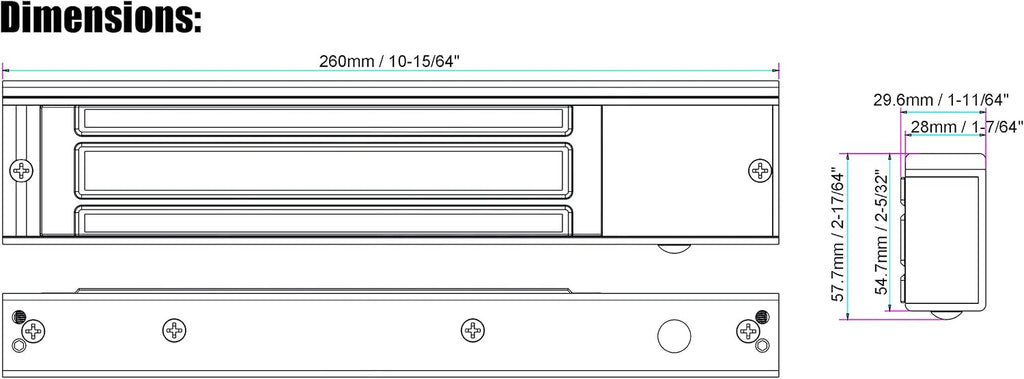

Lock Size: 260Lx54.7Wx29.6H(mm) / 10.24Lx2.15Wx1.17H(inches)
Armature plate: 190Lx45Wx13.2H(mm) / 7.48Lx1.77Wx0.52H(inches)
Holding Force: 350kg/800Lbs
Voltage: 12 or 24VDC
Current Draw: 12V/480mA or 24V/240mA
Suitable for: Wooden door, Glass door, Metal door, Fireproof door
Surface Temp: Less than +50℃ / 122℉
Operating Temp: -10℃~+55℃(14℉-131℉)
Suitable Humidity: 0~95%(non-condensing)
Finishes for Shell: Anodized aluminum
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 2.7kg / 5.95lbPackage:
1 x Electric Magnetic Lock
1 x User manual
1 x Installation Kit

Features & Specs

• Additional Features : Keyless
• Control Method : Remote
• Lock Type : Electriomagnetic Lock

Item details

• ASIN : B01IES1VH0
• Brand Name : UHPPOTE
• Included Components : Electriomagnetic Lock
• Manufacturer : UHPPOTE
• Manufacturer Part Number : YM-350N(LED)
• Model Number : UT-M-350KG
• Number of Pieces : 1
• UPC : 612046377048

Materials & Care

• Finish Types : Anodized aluminum
• Material Type : Aluminum

Measurements

• Item Dimensions : 11.2 x 2.2 x 1.1 inches
• Item Weight : 2.7 Kilograms

Style

• Color : Silver
• Shape : Rectangular
• Style Name : Modern
